3.5mm (DC to 34 GHz)

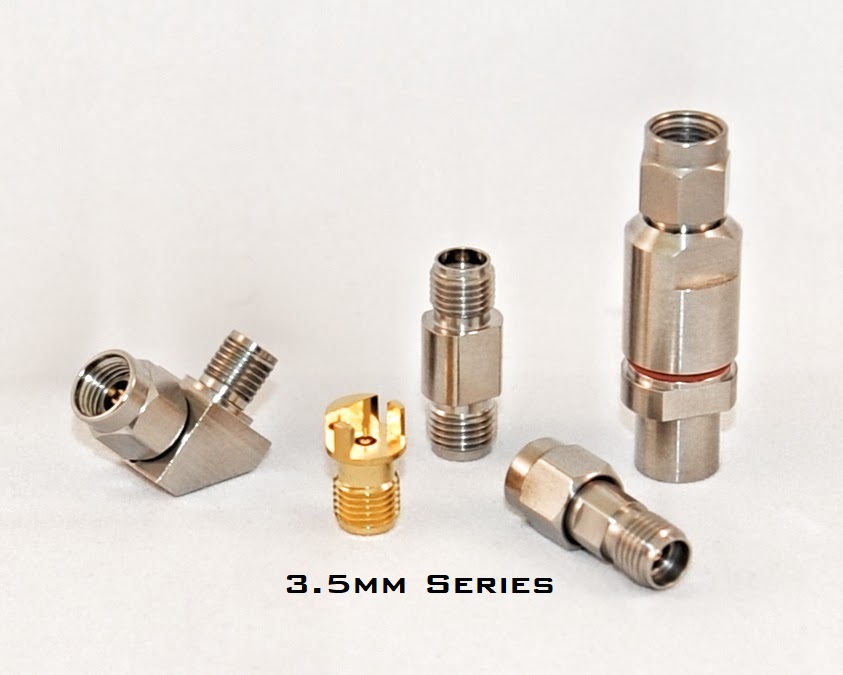

3.5mm-series.jpg3.5mm DESIGN FEATURES: SGMC Microwaves 3.5mm series are precision grade connectors designed for use with microwave applications requiring excellent performance up to 34 GHz. Optimum results are achieved with the use of a 3.5mm outer conductor diameter and air dielectric. The 3.5mm series is mechanically compatible with SMA and 2.92mm connector series. Misalignment problems during mating are minimized by shortening the male center contact preventing damage to the female center contact tines. SGMC offers an extensive line of 3.5mm precision adapters, receptacles, and cable connectors for various semi-rigid and flexible coaxial cables. Special designs are also available upon request.

  • Frequency Range:  DC to 34 GHz
  • Mechanically compatible with SMA & 2.92mm connector series
  • Ruggedized construction for repeatability and reliability
  • Phase matched adapters
  • Captivated Center Contact
  • Low VSWR and insertion loss

3.5mm Design Features and Specifications 3.5mm Interface Mating Dimensions
